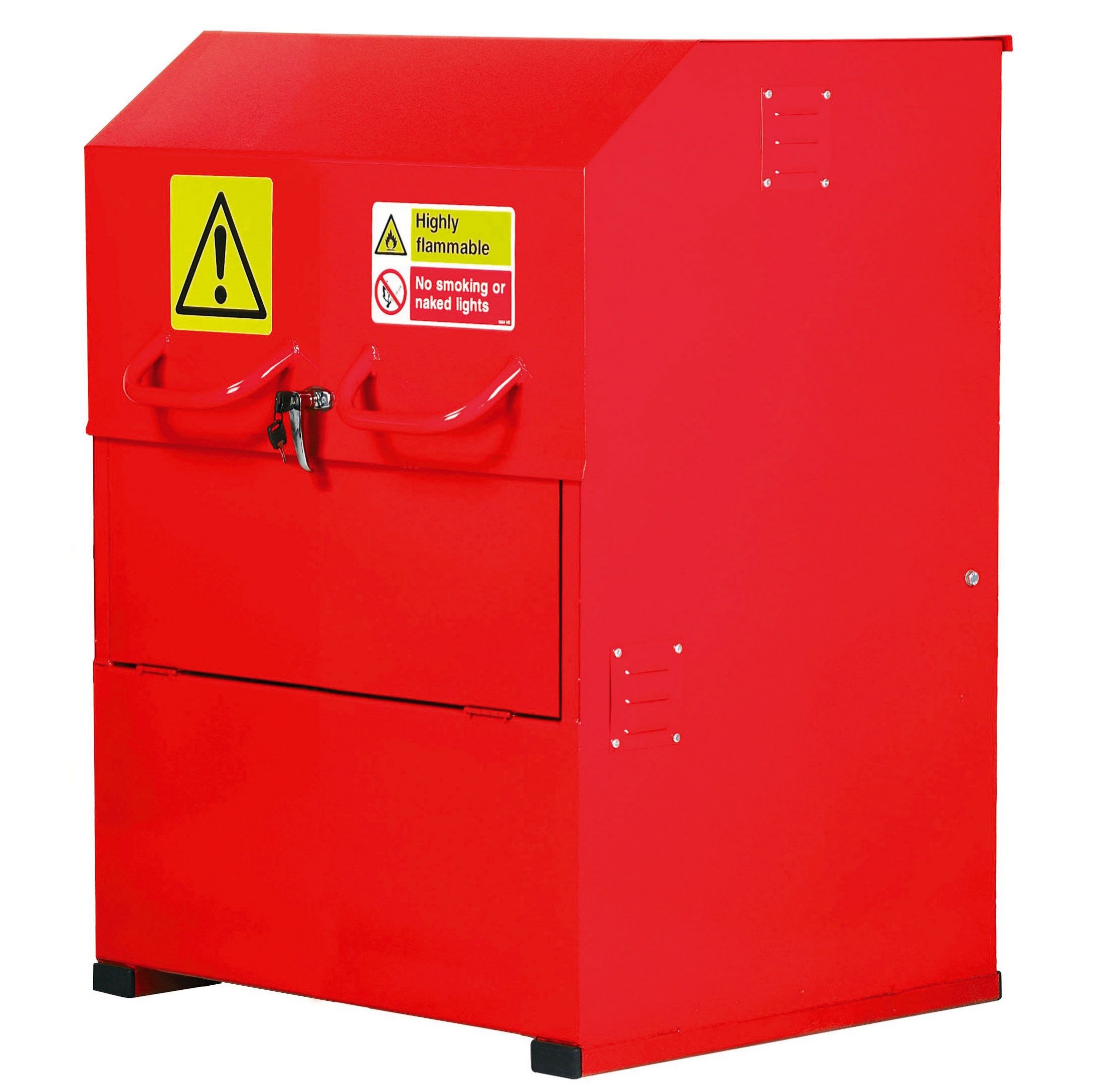

Hazardous Storage Vaults

Product Information

Hazardous Flammable Storage Vaults comply with the Flammable Liquid Storage Regulations (1972) as appropriate and the Factory Inspection Guide HSG51. The adjustable vent meets the requirements of both Flammable Storage (vent closed) and Agrochemicals (vents open).

These hazardous cabinets have an all-welded structure conforming to the A.P.E.A Construction requirements. They provide half-hour protection from collapse and the passage of flame, are multi-lockable for high security and are fitted with a lift-up action lid assisted by gas struts. For extra protection and forklifting, the units have skids on the base.

All models have a liquid-tight base to contain spillages. The middle shelves pivot on models 1 and 2 to enable larger items to be stored on the base level.

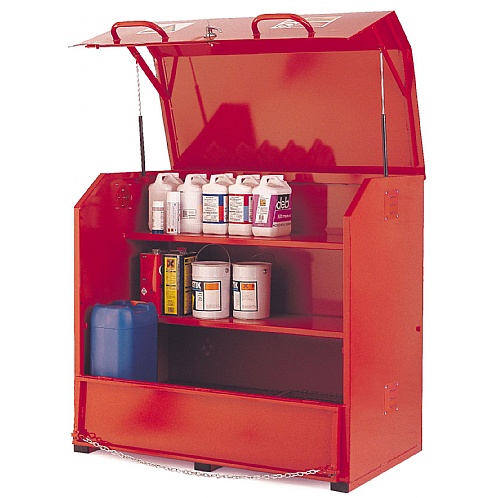

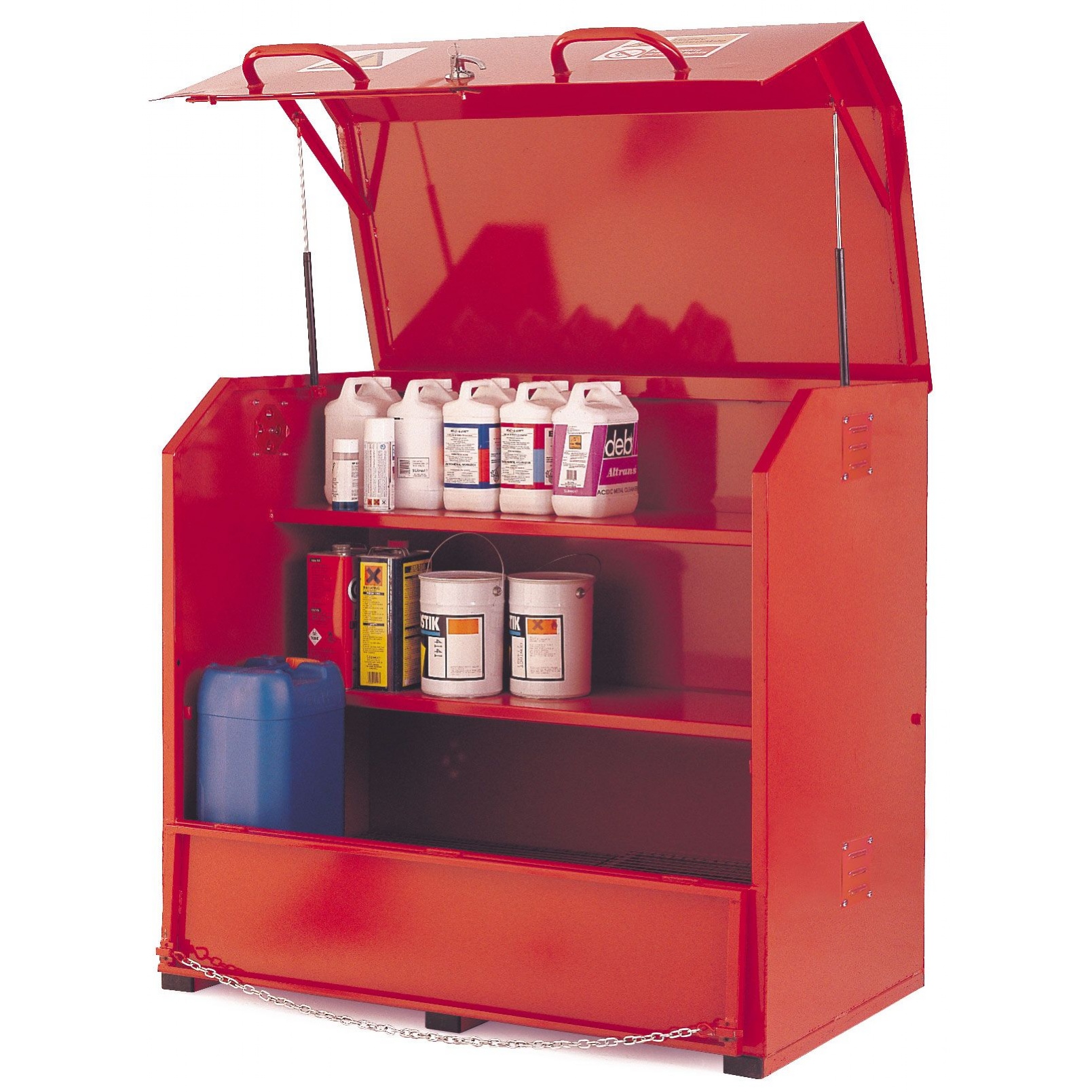

Model 1) has 2 x shelves: Top 690 x 400mm fixed, Middle 690 x 400mm pivots

Model 2) has 2 x shelves: Top 1360 x 400mm fixed, Middle 1360 x 400mm pivots

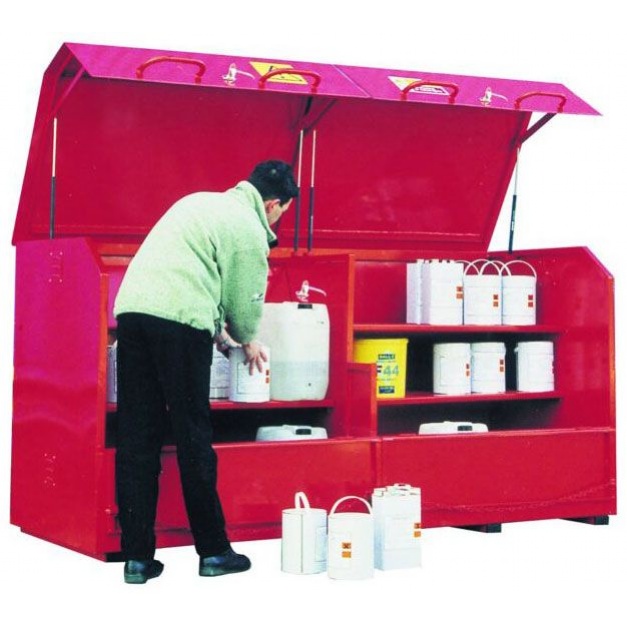

Model 3) has 4 x shelves: 1220 x 500mm with a central partition. The two middle shelves and the two top shelves fold away, and the two top shelves are made in 3 sections. The back section is fixed in position and the front two sections removable.

Finished Enamel epoxy-coated Red and manufactured in the UK with a 3-year manufacturer guarantee.

PLEASE NOTE: A forklift truck will be needed to unload this unit.

Model	O'all Dims H x W x D mm	Wgt
1) Base Capacity 120 Litres	1270 x 700 x 850	180kg
2) Base Capacity 250 Litres	1270 x 1370 x 850	260kg
3) Base Capacity 550 Litres	1270 x 2500 x 1080	460kg
