Cantilver Bar Racking, Fast Delivery

Product Information

Our cantilever bar racking system is based on modular bays and fittings to provide cost-effective storage of long and awkward items. Supplied as Starter and Add on Units each bay comes complete with three arms per frame and you can add or deduct the number of levels required. Easy to build and reconfigure. Up to 2200kg per side with a standard height of 1976mm but 2432mm and 2964mm are available on request.

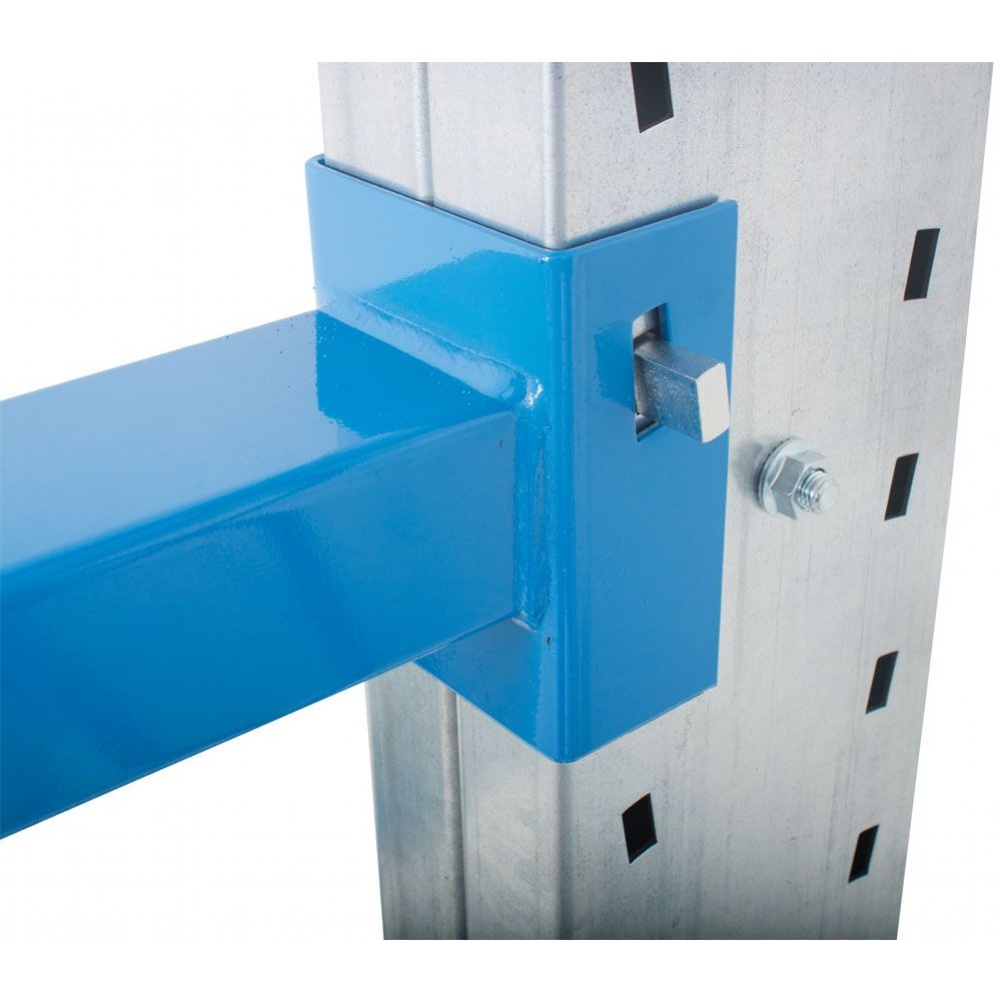

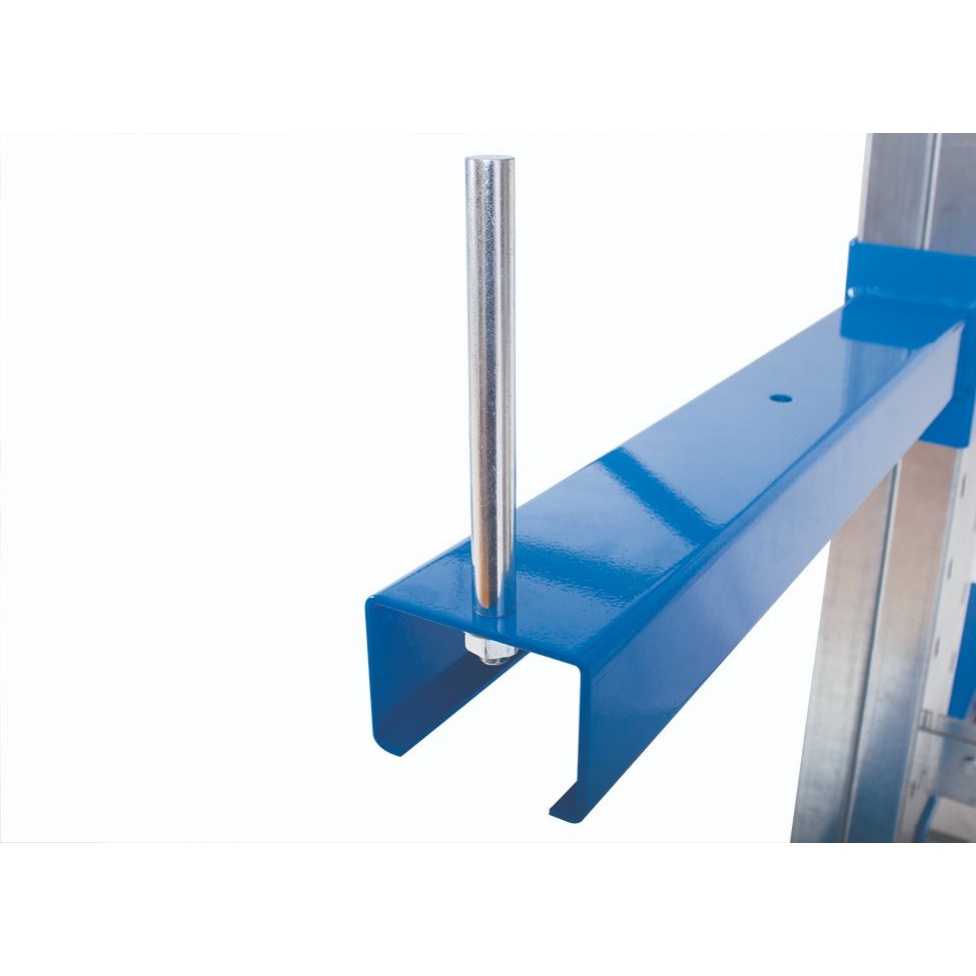

The arms which have a 2 degree rake can be fitted with end stops (at an extra cost shown) which can be bolted into two positions, to secure any loose products from falling off. The frames are spaced 1000mm or 1500mm apart with a bolted-on X brace, so you can easily work out your run using the starter and add on bay. The max frame capacity is 2200kg and the arm are adjustable at 75mm increments. Galvanised steel finish with Blue powder coated arms.

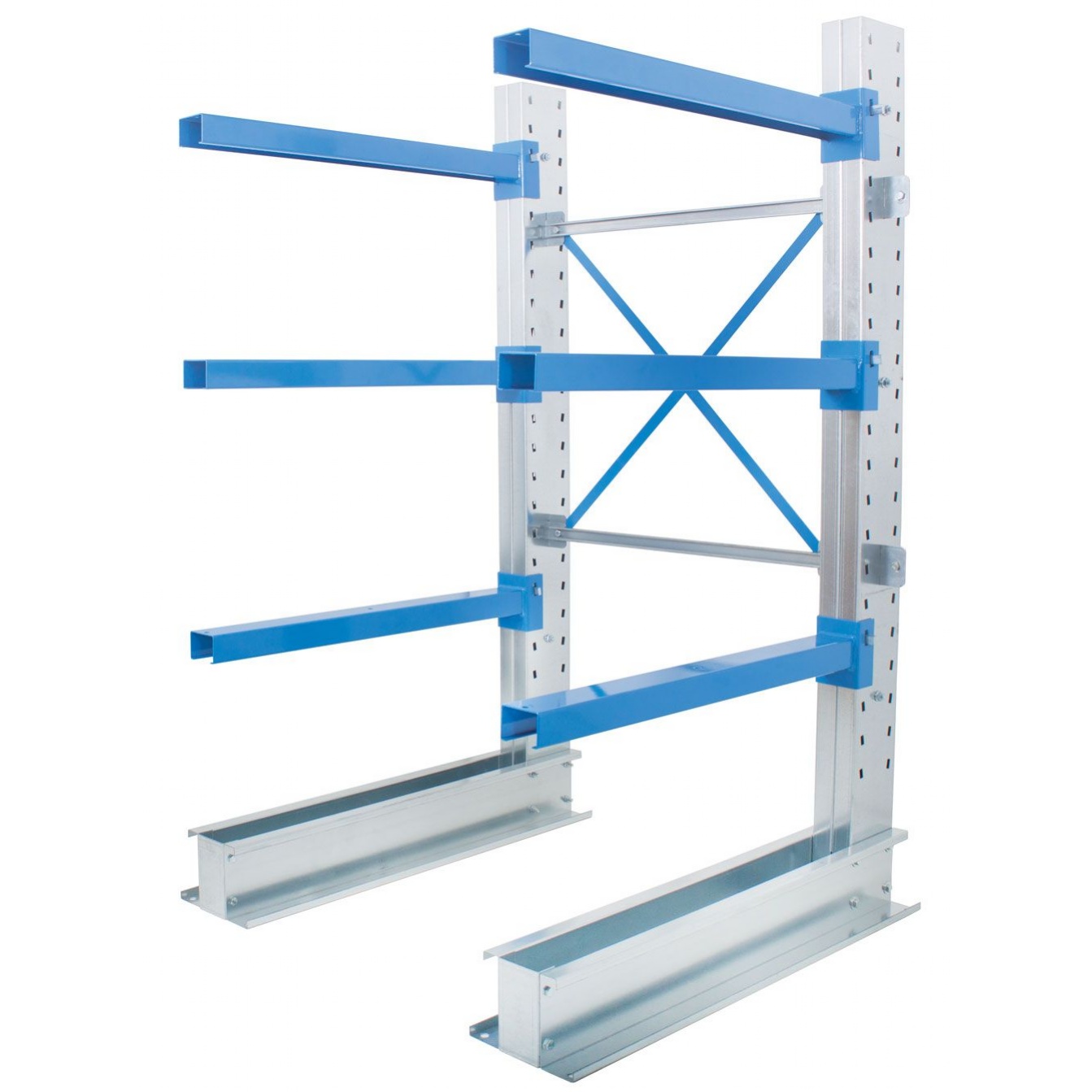

The Single-sided cantilever bar rack has 3 arms

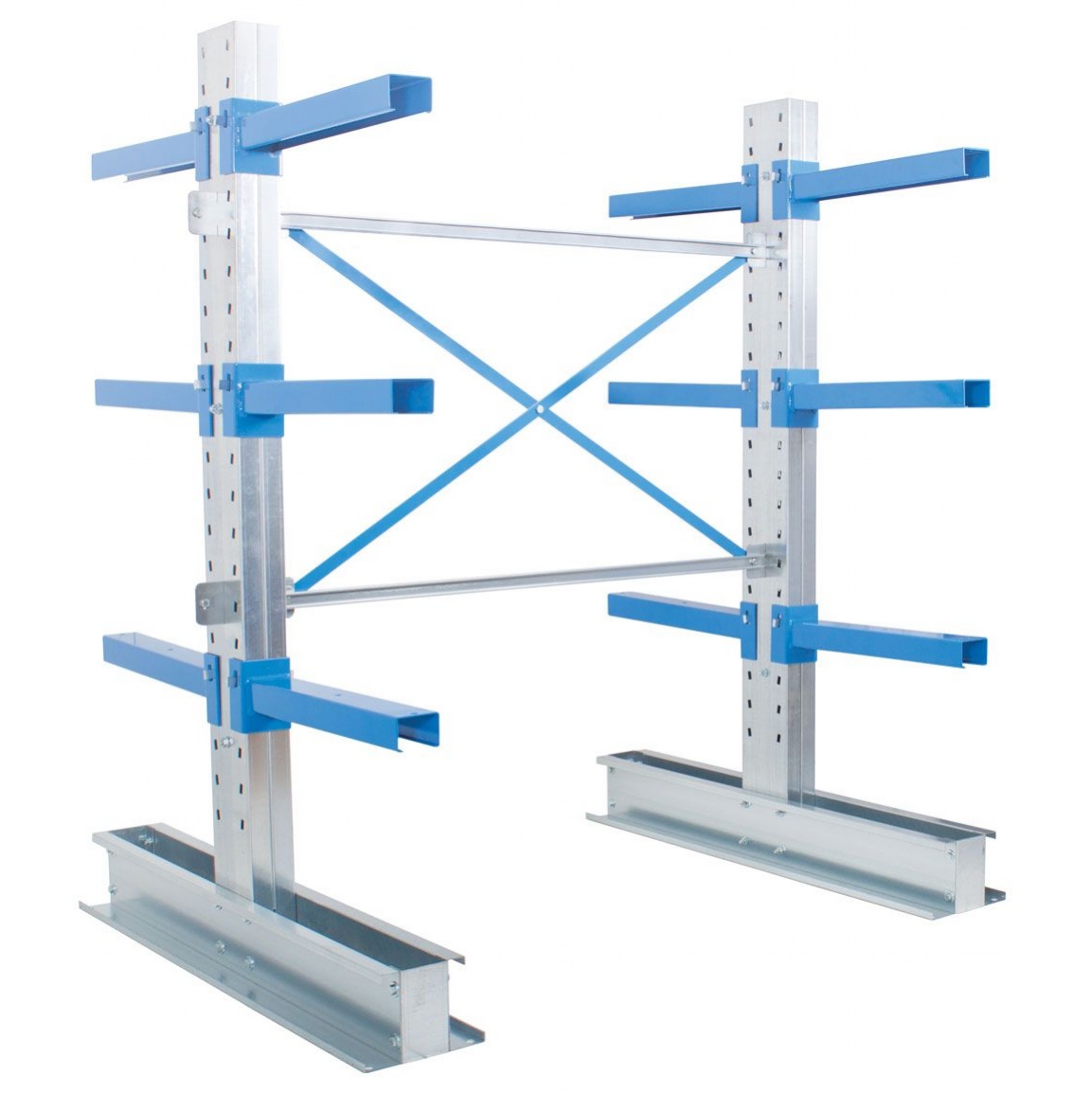

The Double-sided cantilever bar rack has 6 arms
Starter bays include base and column per frame plus bracing, 2 uprights, and all necessary floor fittings
Extension bays include base and column per frame plus bracing, 1 upright, and all necessary floor fittings
​
Guaranteed for 5 years and delivered in 5 working days

Please note, all dimensions stated are nominal shelf sizes and the overall bay / run dimensions may differ depending on the system ordered and / or your chosen layout ? please double check the relevant technical page before ordering or if you are unsure please contact us

Arm Length	Max Load per side at 1976mm high
600mm	2200kg
800mm	1900kg
1000mm	1600g
