Marine Acoustic T5 Phone Hood 23,9 dB

Product Information

T5 Marine Acoustic Phone Hoods are designed for external or internal and attain a high level of noise reduction up to 23.9 dB.

Thermoset Composite GRP Moulding manufactured using a certified RTM system to BS476 Part 7 Class II surface spread of flame. Inside the hood's outer shell is a perforated polypropylene lining that houses 60mm non-hygroscopic acoustic insulation. Fitted to the inner back wall is a stainless steel apparatus plate; beneath this is a 316 stainless steel shelf (165mm deep) with a white powder coat finish and easy cable entry.

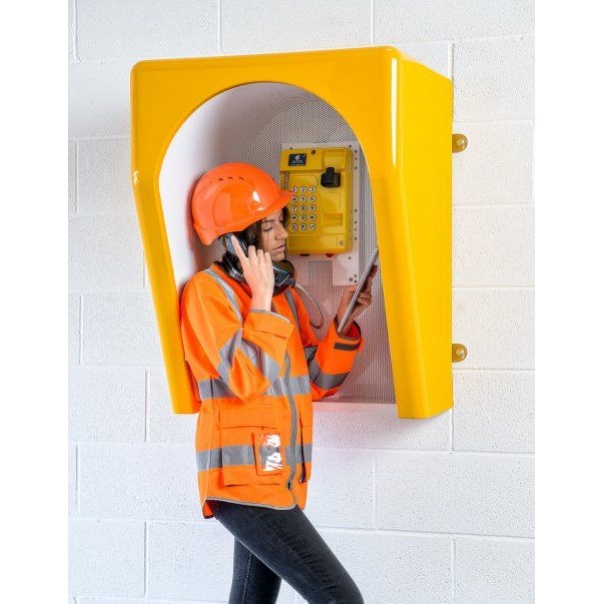

The hood is fixed to the wall via two stainless steel brackets that are secured through the hood's back panel enabling a load of up to 60 kgs to be safely mounted.

High volume GRP manufacturing is not generally a process that is undertaken in steri
Thermoset Composite GRP Moulding manufactured using a certified RTM system to BS476 Part 7 Class II surface spread of flame. Inside the hood's outer shell is a perforated polypropylene lining that houses 60mm non-hygroscopic acoustic insulation. Fitted to the inner back wall is a stainless steel apparatus plate; beneath this is a 316 stainless steel shelf (165mm deep) with a white powder coat finish and easy cable entry.

Outer Shell - GRP
316 Stainless Steel Shelf, powder coated white
Acoustic Insulation - 60mm of Tissue faced non hygroscopic Rockwool (RW3) density 60kg/m3
Insulation Liner - White Perforated Polypropylene
Apparatus plate - 316 Grade Stainless Steel powder coated white
Mounting Brackets - 316 Grade Stainless Steel
Boxed Dimensions - 980 x 800 x 680mm
Boxed Weight - Approx 35kg

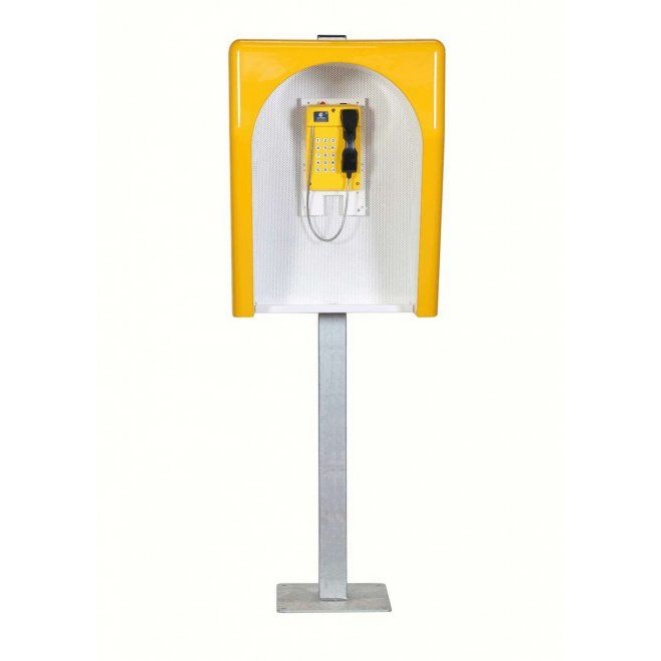

For wall mounting the hood is fixed to the wall via two stainless steel brackets that are secured through the hood's back panel enabling a load of up to 60 kgs to be safely mounted. Alternatively, the post mounted nodel is supplied compleet with a 2m post.

T5 Marime Acoustic Phone Hoods are avaiable for inside or outside use and can be wall or post mounted. Finished as standard in Yellow or Orange but other colours can be suppied depending on the quantity required.

Manufactured in the UK these T5 marine acoustic phone hoods are made to order cannot be cancelled once ordered and are non-returnable unless damaged or faulty.

O'all dims	H x W x D mm	Wgt kgs
920 x 700 x 610mm	29.5Kg
