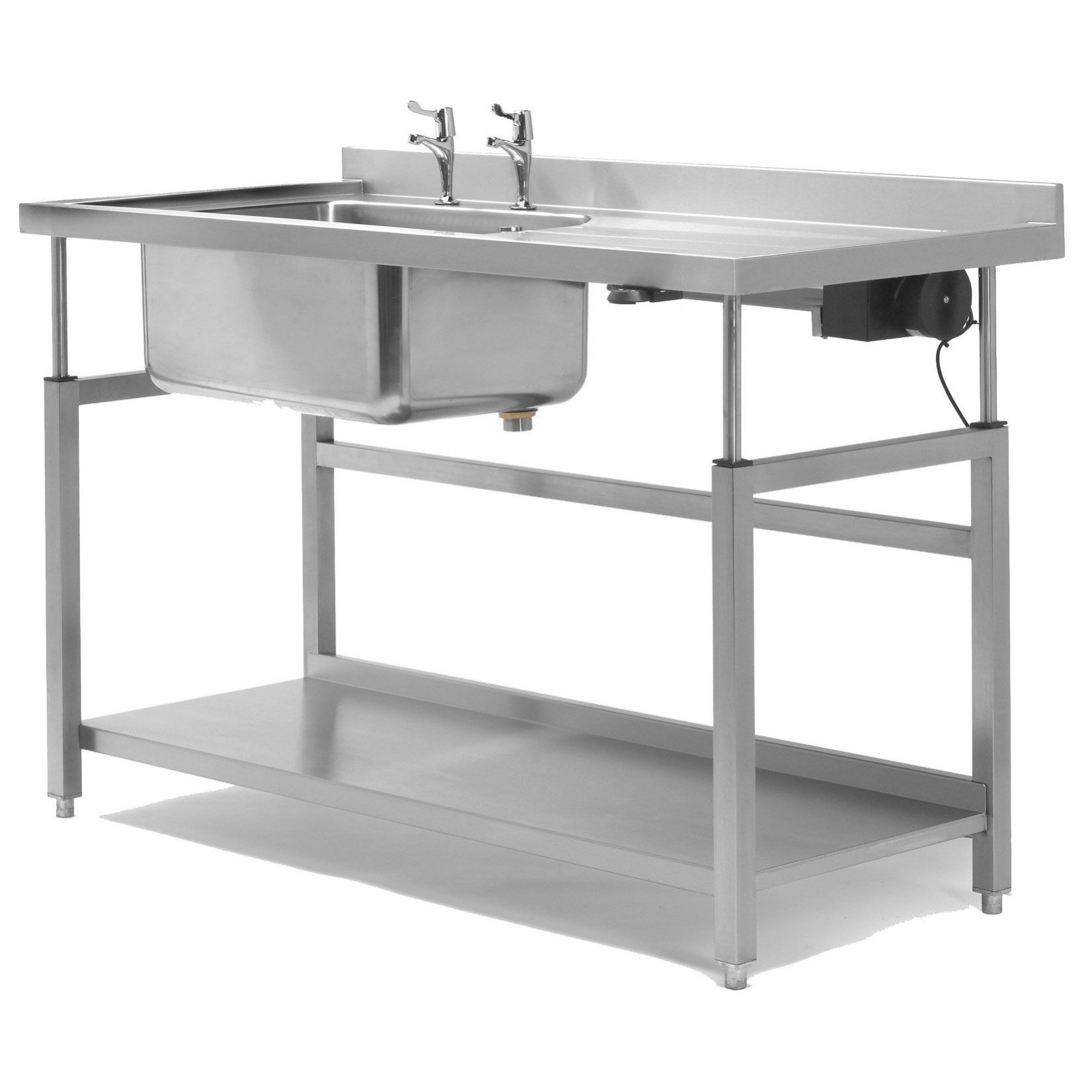

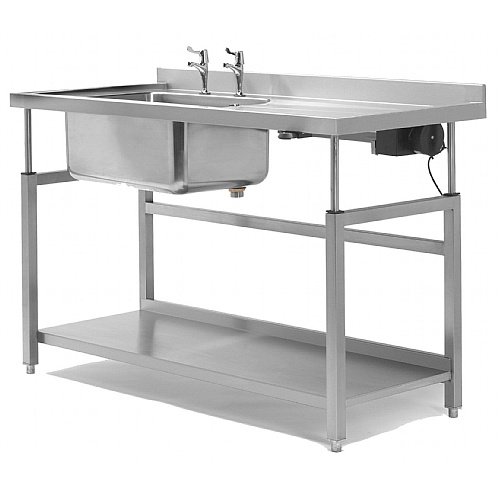

Stainless Steel Sink Unit Height Adjustable, Manual and Electric

Product Information

These Stainless Steel Rise & Fall height adjustable Sink Units are adjustable from 720 - 1020mm by manual crank or electrically operated. Available with a single or double bowl and a lower shelf or 3-sided frame suitable for wheelchair access with manual or electric operation. Suitable for multi-operative use in.NHS, Education, Catering, and Pharmaceuticals industries.

These stainless steel height-adjustable sink units are available in 5 different widths with two standard depths and the height adjustment (manual or electronic) enables the work surface to be raised or lowered to the optimum height for the operator via a manually operated hydraulic piston system with a crank handle or electronically. Suitable for wheelchair users and multi-operative use in the busy workplace. Max Load UDL = 220kgs

Each stainless sink unit is supplied as standard with a single bowl or double bowl 500 x 500 x 250mm, a 75mm rear upstand on the top and a lower shelf with a 40mm rear upstand to stop items from falling off or a 3-sided frame suitable for wheelchair access

MANUAL HEIGHT ADJUSTMENT - operated via a crank handle fitted at the front of the table.

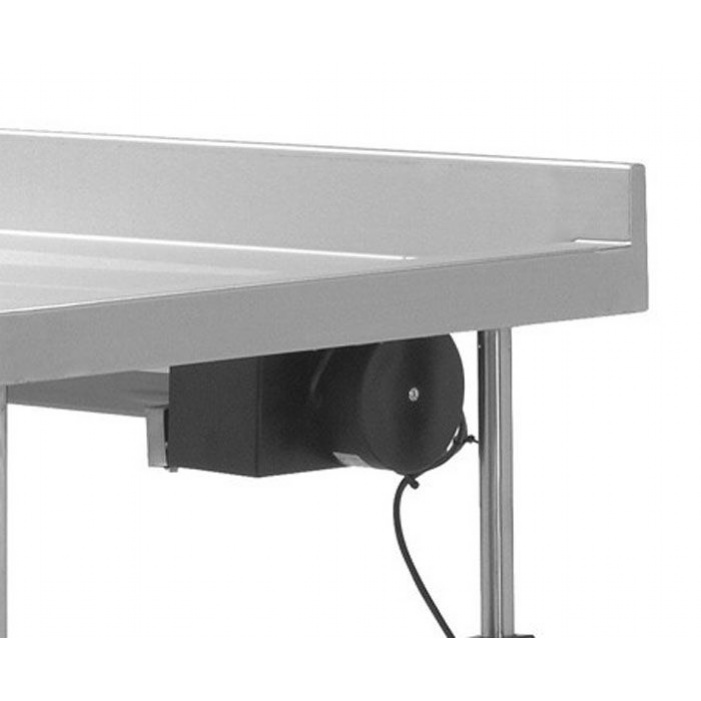

ELECTRONIC HEIGHT ADJUSTMENT - operated by a Rise and Fall Motor which works on a piston movement within the legs via the hydraulics, and is operated by a push button at the front.

DISABLED SINK UNIT - in lieu of the lower shelf we can supply, on request, a 3-sided frame (without lower shelf), at no extra cost, to allow for wheelchair access.

MOBILE - these units can also be supplied with 4 x 125mm swivel steel castors (2 braked) which enable moving of the unit for cleaning purposes (Stainless Steel can be supplied on request.

SPECIAL SIZES - can be manufactured on request

These height-adjustable sink units are manufactured in the UK

Overall Dims	mm
Width (Single Sink)	900, 1000, 1200, 1500, 1800
Width (Double Sink)	1500, 1800, 200, 2400
Depth	650, 700
Height	Adjustable 720 to 1020
